Cedar call pay phone

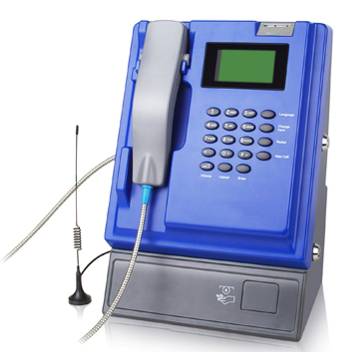

Cedarcall Card Payphone

MODEL: PHONE-A (with RJ45 as WAN interface)

PHONE-B (with RJ45+WiFi/3G as WAN interface)


The Cedarcall Card payphone can help Customers to run payphone business at outdoor public sites such as parks, streets, resorts.

The end user can insert a smart IC card (account card) to make calls. The payphone owner needs to provide Internet access to the payphone, and assign a Cedarcall IC card. Anyone can run this payphone business if he get Cedarcall IC cards.


basic functions & features

-            Various calls can be made via valid smart IC cards and free calls can be made without payment;

-            Robust casing and superior sealing give high resistance to dust, water, corroding and vandalism;

-            Modular structure makes maintenance easy;

-            Can be wall mounted;

-            Dynamical display of duration during a call;

-            Capable to recharge the Cedarcall account balance (optional);

-            Support automatic failover between WiFi/3G network and RJ45 connection (for model PHONE-B only).



Suited for outdoor unsupervised environment (e.g. parks, streets, resorts) with Internet access.



Greatly reduce cost of operation and maintenance in comparison with traditional PSTN payphone.

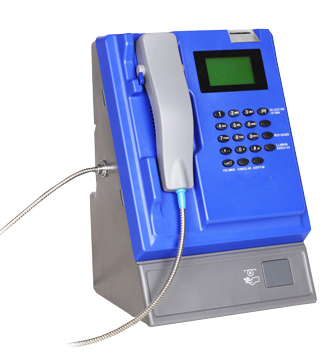

Cedarcall Indoor Self-Service Station

Model: WIFI-AV (with RJ45 as WAN interface & VoIP Payphone feature)

WIFI-BV (with RJ45+3G as WAN interface & VoIP Payphone feature)


The Cedarcall Indoor Self-Service Station can help Cedarcall agents operators run payphone business, and provide services of WiFi hotspot, by connecting with xDSL/cable modem or 3G network (optional backup connection, only for model WIFI-BV). Optionally, it can also sell VoIP account and recharge balance.

The Station is plug-&-play and easy to install. And the operator can define the WiFi Internet service charge and manage accounts on an Android smart phone/tablet (optional).

By inserting coins into the Station, the end user can directly make calls via cedarcall company , or enter his/her mobile phone number on the Station for registration to get WiFi Internet service on the PC or other WiFi-enabled device to access Internet. When the paid time or free time elapses, Internet access is automatically disconnected and the account is stopped.


basic functions

-            Capable to make Cedarcall calls via valid coins;

-            Capable to recharge the Cedarcall account balance (optional);

-            Provide a WiFi coverage to support Cedarcall users making a Cedarcall call via their smart phones;

-            Provide user-friendly login page for end users to access Internet;

-            Provide real-time information of online duration and traffic to ensure end user’s benefits;

-            Support online metering feature to protect operator’s benefits;

-            Complete AAA (authentication, authorization, and accounting);

-            Support acquiring account/password info on e-shops (optional);

-            Offer web-based Network Management System (NMS) to manage 1000 sets of online Station and provide exportable statistics reports (optional);

-            Marketing cooperation includes customizable portal page, login pages, and information window (optional).


-            Excellent coin-learning ability to recognize your local coins and discriminate fake coins;

-            Modular structure makes maintenance easy;

-            Constructed of durable ABS plastic;

-            Can be wall or desktop mounted;

-            Support roaming between chain stores with the same account (optional);

-            Support automatic failover between 3G network and RJ45 connection (for model WIFI-B only);

-            Professional coin passage design to prevent coin stolen or fraud.


-            Provide more retail points of Cedarcall account to help Cedarcall agents enhance marketing efficiency;

-            Cedarcall user can purchase account more easily, and enjoy Cedarcall call service more quickly;

-            By providing free WiFi service to VoIP users, the users can make VoIP calls via their smart mobile phone in public places, which will greatly increase traffic of VoIP operator;

-            Can help Cedarcall agents extend their service to WiFi.


Suited for indoor or storefront public environment, such as:

-            Coffee shops, pubs, lounge bars, hotels, restaurants;

-            Beauty salons, chain shops, lobby of banks/hotels;

-            Sports area and recreation centers, like bowling, billiards;

-            Exhibition and convention sites;

-            Beaches, parks, swimming pools.


Environmental Conditions

-          Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage)

-          Humidity: 10% ~ 85% non-condensing

Power Requirement

-          External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12VDC, 1A)

-          Power consumption: 10 watts

WiFi Operation Range

Radius up to 150 meters (outdoor)


-          IEEE 80, 2.11 b/g/n Wireless LAN

-          Static IP WAN client, DHCP WAN client, PPPoE WAN client

-          Zero end-user configurations


-          Built-in authentication

-          Web-based login page authentication

-          User authentication and accounting


-          Android-app-based account inquiry and registration (optional)

-          Web-based management tool (optional)

-          Support multi-languages: English, French, German, Italian, Russian, and Spanish (optional)

About Coins

-          Coin Acceptance: 15 different types

-          Prepayment Storage Capacity: 5 coins

-          Usable Coins: Diameter: 16mm ~ 31mm, Thickness: 1.2mm ~ 3.2mm

-          Coin Box Capacity: 1 liter


-          Supported Protocols: ITU-H.323 V4 and IETF SIP V2

-          Line Echo Cancellation: Supported

-          Speech Quality: Ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer


-          Housing Material: ABS plastic

-          WAN Interface: 1x RJ45 port, and 3G module (for model WIFI-B200V only)

-          Antennas: 1x WiFi (built-in), and 1x 3G (magnetic-stand, for model WIFI-B200V only)

-          LCD: 4-line, 128X64 pixels, backlight supported, shock resistance ≥ 4,000N

-          Dimensions: 350mm X 270mm X 200mm (not including antennas)

-          Weight: 4 kg

-          Packing Dimensions: 430mm X 320mm x 240mm

-          Packing Weight: 4.4 kg
